Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool

Name: Pipeline Bursting Equipment Pipeline InSitu Replacement System Trenchless Drilling Tool
Brand: Longway
Price: 1 USD

Quality Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool for sale

Brand Name : Longway

Model Number : KX50/80

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 5-8 days

Packaging Details : According to clients' needs

Load` : 500KN

Max pull-back speed : 1.5m/min

Min. pull-back speed : 0.8m/min

Power : 4KW

Size of the host : 480*400*400mm

Hydraulic station size : 800*550*500mm

Host weight : 120kg

Hydraulic station weight : 140kg

Fit diameter of manhole : 420mm

Require well dimensions : 800mm

Rod specification : 60*500mm

Certification : ISO9001

Price : Negotiable

Supply Ability : 20-30 working days, which will be adjusted according to different products and inventory

Contact Now

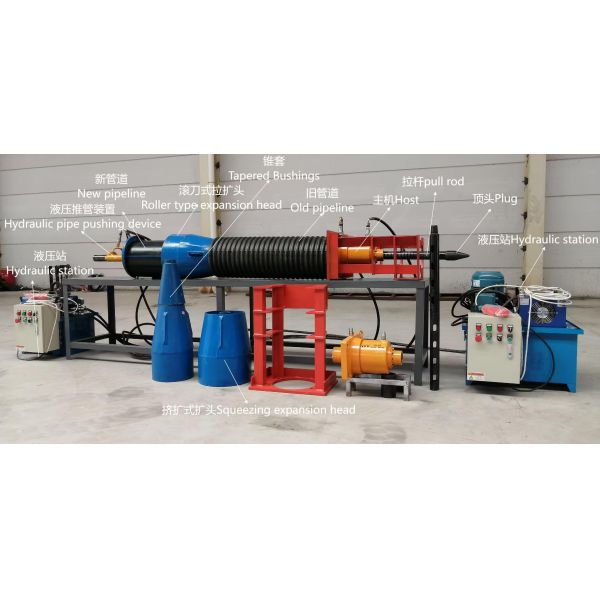

1. The pipeline in-situ replacement system independently developed by our company is mainly composed of the main unit, pull rods, cone sleeves, pulling-expanding heads, hydraulic pipe pushing devices, hydraulic stations (in two sizes), and top heads, and is suitable for the renovation construction of old urban pipelines.

2. Main component descriptions of the pipe bursting machine

2.1 Hydraulic station: Equipped with automatic direction change and leakage self-protection functions. The electromagnetic valves support manual/automatic switching. Operators can operate in the well by holding a remote control.

2.2 Threaded pull rods: Adopting an insert-free design, it can achieve automatic retraction of the rods, effectively reducing the labor intensity of workers and improving construction efficiency.

2.3 Main unit: Compact structure, light weight, convenient for well entry operation; unique threaded pull rod mode, can achieve automatic retraction of the rods without the need for inserts.

2.4 Pulling-expanding heads: The blades are of rolling type and have undergone quenching treatment, which can effectively avoid the accumulation of debris in the old pipeline and have a long service life.

2.5 Hydraulic pipe pushing device: Combined with the slips and cone sleeves, it can lock the new pipeline at any position.

Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool

Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool Images
